Sunday, November 11, 2012

Finally!

A few action shots of the cabinet!





And a video showing how the menus work to select games...


Finishing

Long overdue update... the cabinet has been finished for about 9 months now, but I seriously slacked on the blogging.

Since the last post, I did all the finish work on the carpentry, painted, did all the wiring, software configuration, etc.

A few pics of the highlights:












Thursday, July 28, 2011

Week 17

Tonight we finished most of the woodworking. We just have to make a few more holes for buttons and joysticks, but it is pretty much done.

I had to use this page to figure out the radius of the circle that would draw the curve on the front of my control panel. Turns out the radius of that circle is right at 6 feet. We made this contraption to help us draw it...





It is just a long piece of trim with a nail 6 feet from one end and I used a sharpie on the edge to make the line. It was a little tricky to get it all lined up right, but it worked pretty well. In the shot below you can kind of see my scribbles from figuring up the proper radius:



And here is the full control panel shape made of wood, sitting back on that same kitchen counter from where we did the mock up on week 1:



And here the whole thing is with the control panel balanced on the cabinet back at my garage:




Pretty much now we just have to get some button and joystick holes put in the top (I need to decide on a button layout and placement first) and route a couple of slots for t-molding and it will be down to just the painting and wiring. Exciting times!

Week 16.5

I had some time today so I got a start on the control panel. I got the bottom and the sides cut out and attached to each other, and I got the top and sides mostly cut out. This was the last thing keeping me from bringing the cabinet home (I needed the cabinet to make sure I was making the cp the right size).

So, Alicia came over and we were able to fit the cabinet in the back of the 4 runner and it is now resting nicely in our garage.

The photo below shows it with the sides and bottom of the control panel balanced on it.


Wednesday, July 20, 2011

Week 16

Huge milestone tonight! The construction of the cabinet body is officially done! We still need to fill holes and stuff like that, but it is completely built.

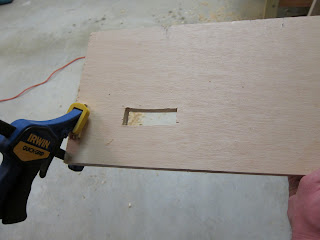

First, we finished installing the speaker shelf (just screwed it in, it was clamped on for the picture last week). Then we created some recessed button holes on the back of the cabinet for power on/off and administrative functions:



Here is one of them with a button in place:



And... the completely built cabinet:





Now we are starting to plan the control panel, and we got lucky again and found another leftover piece that was the exact width we needed. Makes sense because we cut several pieces to the overall width of the cabinet, but it is nice that we are still working through those and that the leftover pieces are falling into place for us now. Nice to not have to cut every little thing anymore.

It feels really good to have the cabinet itself built. It seems like it has taken us forever but it looks really good and has been a fun process. It will be nice to see it with the control panel on it.

Week 15.5

We had a chance to get together and knock out some cabinet work this past weekend. We were really productive and the cabinet is getting pretty close to being built now and we'll be moving on to the control panel soon.

We got the back bottom panel attached and it turns out that we had a "scrap" piece that was the exact right size for the removable access panel on the back:




We installed some magnetic cabinet latches to hold the removable panel in place. We used 4 of them, one in each corner:




Installed a knob to take that panel off and put it back on. This is a chrome knob which should pretty closely match my t-molding:

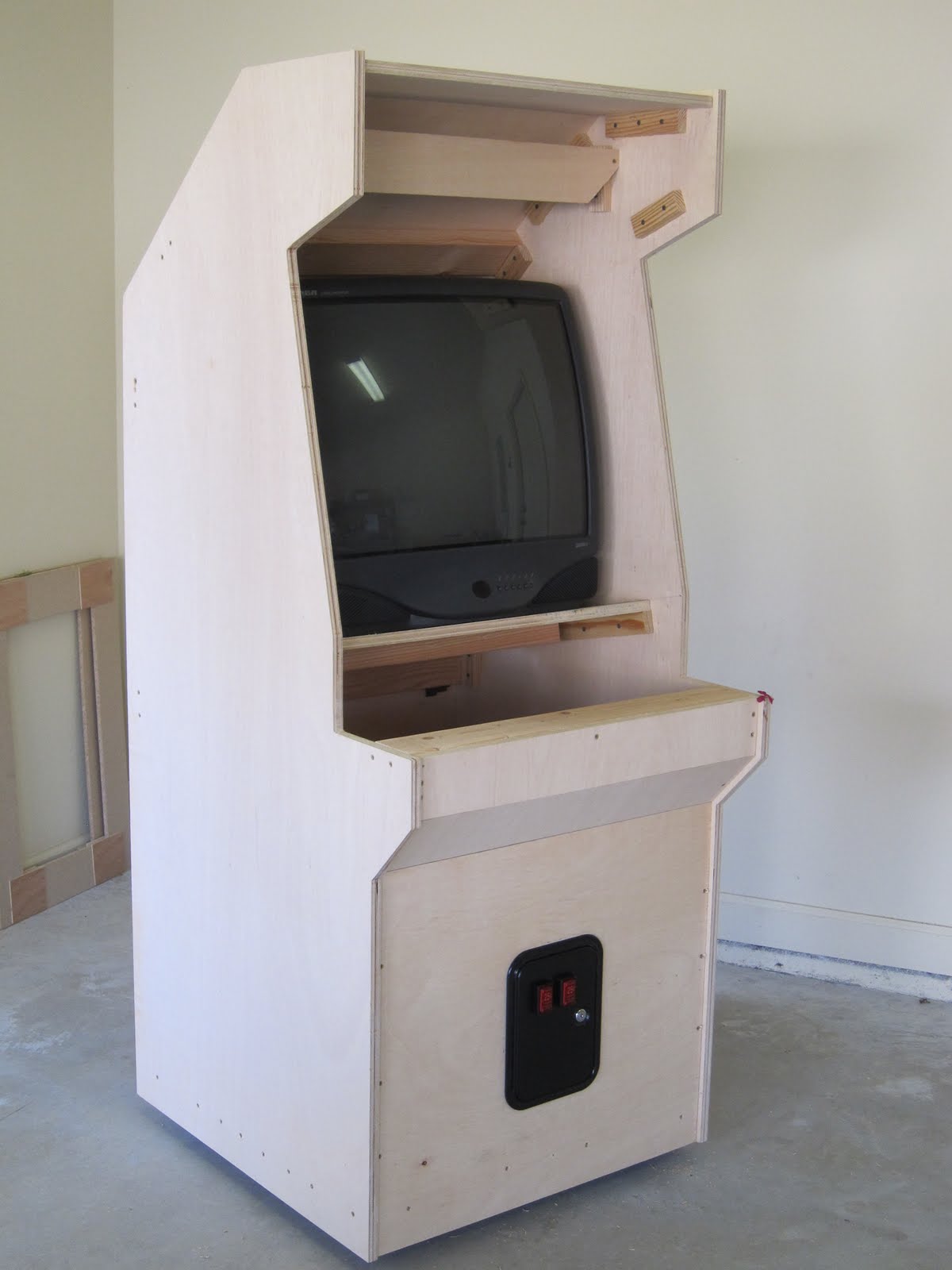

On the front, we got the coin door mounted and the front panel attached:




And we cut out the slots in the speaker shelf:





It is really coming together. Next steps are... mount the speaker shelf, make a hole in the back to run the power cord in and out, mount some admin buttons on top of the cabinet, and move on to building the control panel!

Thursday, July 14, 2011

Week 15

We are moving along pretty well now. A new saw took care of our "jigsaw situation" so we were able to cut out holes for the coin door, the ventilation fan, and the cat5 wall plate. There isn't a whole lot left to do on the cabinet part now, just one more panel to cut and attach and the speaker shelf needs some slots cut and that should be it. Then we will be ready to start building the control panel.

Did I mention there were MAME night cupcakes?!?!
